Check Engine Oil Level

PY14683
PY14683-UN-18JUL12

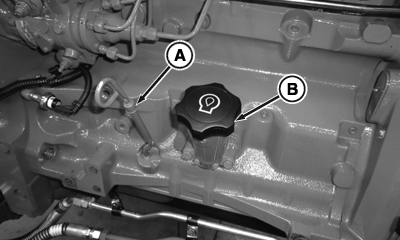

A - Dipstick

B - Oil filler hole

Service Interval —Every 10 hours

  1. NOTE: Engine oil level must be checked before operating the tractor. If you have been operating the tractor, turn the engine off, and wait at least half hour and check engine oil level.

    Park Tractor on level ground and pull out dipstick (A). Oil level should be between two marks on dipstick. DO NOT operate engine when oil level is below low mark on dipstick.

  2. If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT over fill. Use seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolants section.)

PX07220,0000308-19-20160505
