Change Engine Oil and Filter

P13408-UN-17DEC04

PY13170-UN-20OCT12

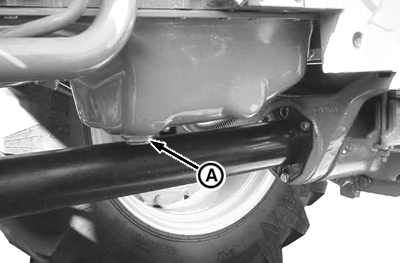

A - Engine Oil Drain Plug

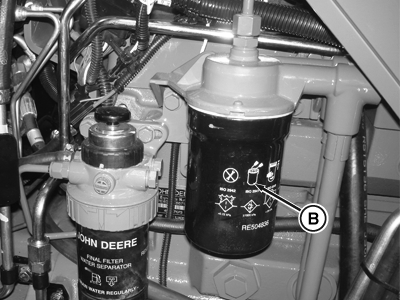

B - Engine Oil Filter

Service Intervals:

• At first 100 hours. • Every 125 hours (if diesel fuel has a sulfur content greater than 0.7 %) • Every 250 hours (under normal conditions)

Remove drain plug (A) and drain oil. Replace engine oil filter (B). Install drain plug and add API-CI classification oil. (See Fuels, Lubricants, and Coolants section.)

Item	Measurement	Specification
Engine Crankcase Oil	Capacity	8.5 L (9 U.S. qt.)
