Replacing Fuel Filter — OOS

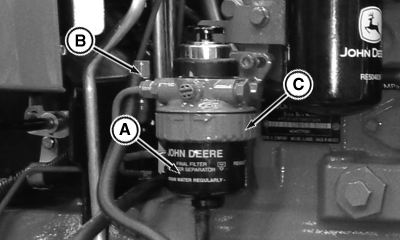

PY16415
PY16415-UN-20OCT12

A - Filter element

B - Fuel shut-off

C - Retaining ring

Service Interval — Every 250 hours

Replace FuelGard™ Filter element (A) at least once a year.

  1. Close fuel shut-off (B).

  2. Remove retaining ring (C) and filter.

  3. Install new filter with retaining ring hand tight.

  4. Open fuel shut-off and bleed air from filter. (See Bleeding Fuel System in this section).

PX07220,0000310-19-20160505
