Drain Water and Sediment From Fuel Tank

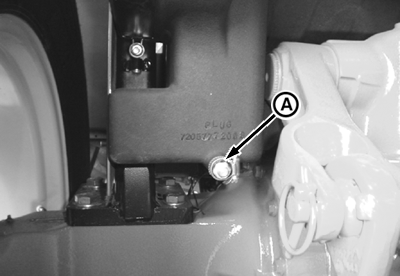

P13421-UN-17DEC04

OOS

P16167-UN-07DEC10

Cab

A - Fuel Tank Drain Plug

Service Interval — Every 10 hours

NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten plug when clear fuel runs from fitting.
