Inspect ROPS for Loose Hardware

CPA0002580-UN-16MAR16

P7644-UN-02APR01

A - ROPS Crossbar

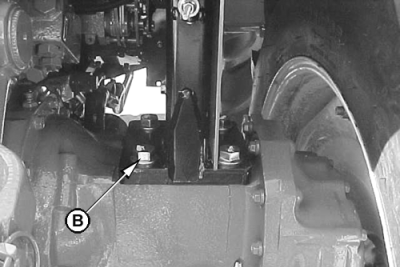

B - Mounting Bolts (8 used)

Service Interval—
	Initial — 50 hours
	Regular — As required

CAUTION: Make certain all parts are installed correctly if roll over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts for proper torque.

This protection offered by ROPS is impaired, as in an overturn incident, or is in anyway altered by welding, bending, drilling, or cutting. Do not reuse damaged ROPS . Any alteration to the ROPS approved by manufacturer.

When installation of equipment on a machine needs loosening or removing Roll-Over Protective Structure (ROPS) (A), mounting bolts (B) tightened to following specifications

Item	Measurement	Specification
Mounting Bolts (M20)	Torque	610 N·m (450 lb·ft)
Mounting Bolts (M24)	Torque	1050 N·m (775 lb·ft)

Inspect ROPS mounting hardware every 250 operating hours for proper torque or replacement.
