Lubricate 2WD Front Axle — High Clearance

P13188-UN-17SEP04

P13189-UN-17SEP04

P13190-UN-17SEP04

P13191-UN-17SEP04

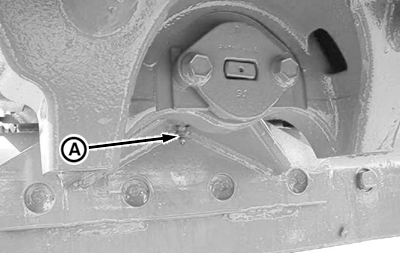

A - Front Lub Fitting

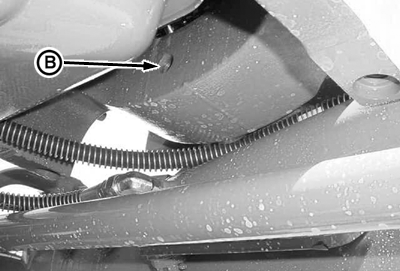

B - Rear Lub Fitting

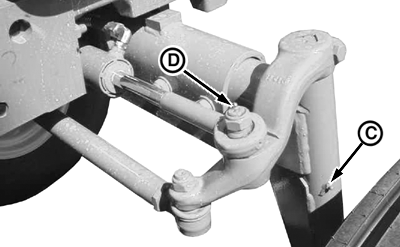

C - Steering Spindle Lub Fitting

D - Steering Cylinder Pivot Lub Fitting - R.H.

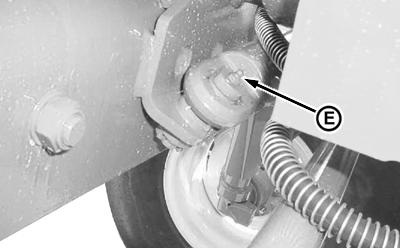

E - Steering Cylinder Pivot Lub Fitting - L.H.

Service Interval:

Front Axle Pivot Pin — Every 50 hours Steering Cylinder Pivot Pins — Every 50 hours Steering Spindles — Every 50 hours [under moist or muddy conditions or extreme loads (frontal loader)]. Steering Spindles — Every 250 hours (under normal conditions).

Lubricate front axle pivot pin applying multipurpose grease to front (A) and rear (B) lub fittings.

Lubricate steering spindles applying multipurpose grease to lub fittings (C).

Lubricate steering cylinder pivot pins applying multipurpose grease to lub fittings (D and E).

See Grease in Fuels, Lubricants, and Coolants section.
