Check Planetary Drive Oil Level

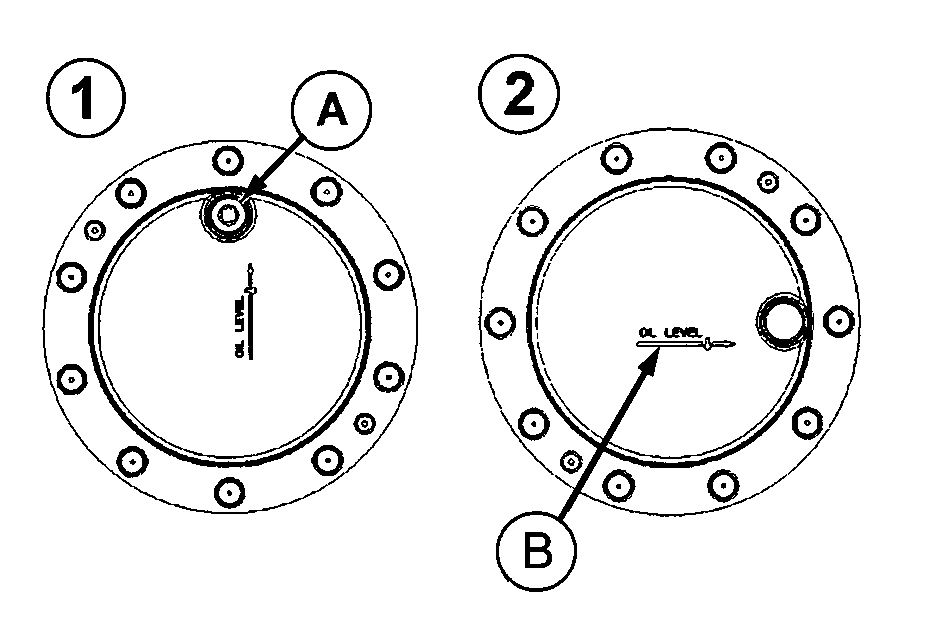

P13181-UN-14SEP04

A - Drain Plug

B - Oil Level Mark

Service Interval — Every 250 hours

1. Park tractor on a level surface so that drain plug (A) is at the highest position as shown (see position 1).

2. Partially unscrew drain plug (A) to release possible pressure.

3. Move tractor until mark (B) is parallel to the ground as shown (see position 2).

4. Remove drain plug (A) and check that oil level reaches the mark (B) or the bottom edge of the hole. If it is not, refill with oil until oil level reaches the mark (B). (See Transmission, Steering, Brake, Hydraulic, and Gear Case Oil in Fuels, Lubricants, and Coolants section).

5. Tighten drain plug (A) to specification.

   Item	Measurement	Specification
   Planetary Drive Plug	Torque	60 N·m (44 lb-ft)
