Check MFWD Axle Oil Level

Service Interval — Every 250 hours

IMPORTANT: Only use an oil that is approved for this axle type.

1.

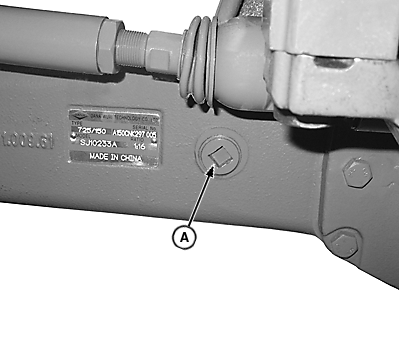

   LV14247-UN-10MAY11

   A - Oil Level/Filler Plug

   PARK tractor on level ground and SHUT OFF engine. Remove key.

---




2. Remove oil level/filler plug (A). Oil level should be even with bottom of the filler plug hole.

3. If level is low, add oil through same hole. (See Transmission, Steering, Brake, Hydraulic, and Gear Case Oil in Fuels, Lubricants, and Coolants section).

   NOTE: Approximate MFWD axle housing oil capacity is 5 L (1.32 gal).

4. Apply thread sealant to threads of plug.

5. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug to Axle Housing	Torque	70 N·m (52 lb-ft)
