Change High Crop Rear Axle Oil

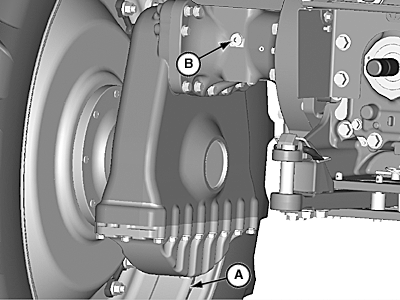

LV14666-UN-18AUG11

A - Drain Plug

B - Fill Port

Service Interval — Every 1200 hours

1. Park tractor on level ground and SHUT OFF engine. Remove key.

2. Remove drain plug (A) and fill port (B). Drain oil into pan and dispose of waste oil properly.

3. Apply TEFLON® or equivalent on thread of drain plug (A).

4. Install drain plug (A).

5. Fill system with transmission-hydraulic oil. (See Transmission, Steering, Brake, Hydraulic, and Gear Case Oil in Fuels, Lubricants, and Coolants section).

   Item	Measurement	Specification
   High Crop Axle - Capacity per Axle	Capacity	17 L (4.5 gal.)
   High Crop Axle with Spacer - Capacity per Axle	Capacity	20 L (5.3 gal.)

6. Apply TEFLON® or equivalent on thread of fill port (B).

7. Install fill port (B).
