Installing Rear Cast Iron Weights

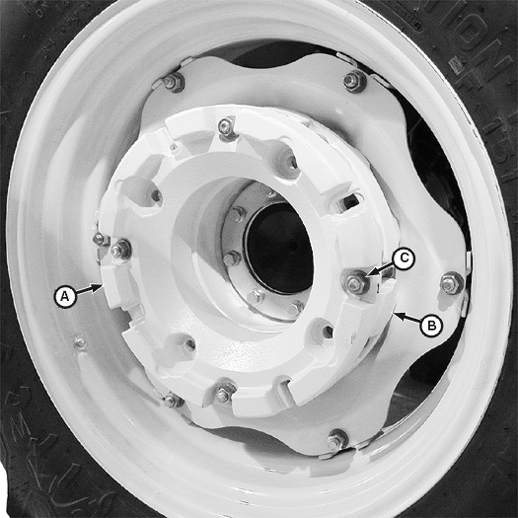

LV6167
LV6167-UN-01FEB01

A - Additional Weight

B - Weight

C - Weight Holes

CAUTION: Optional cast iron weight weighs 50 kg (110 lb). Handle with care! Use appropriate equipment or have the job done by your John Deere dealer.

NOTE: DO NOT install rear wheel weights on a High Clearance tractor.

  1. To install weights on wheel, it is necessary to remove wheel. (See Wheels and Tires Operation section.)

  2. Attach first weight to wheel disks.

  3. To install additional weights (A), install bolts in previous weight (B). Rotate the added weight to align bolts with weight holes (C).

  4. Tighten attaching bolts securely. Tighten again after a few hours service. Check tightness regularly.

PX07220,000032A-19-20160505
