Front Loader Mounting Bracket Installation

P16531-UN-13MAY12

Front Loader Bracket

W09960-UN-23SEP08

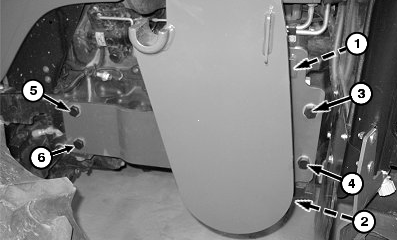

Torque Sequence (Left-Hand Side)

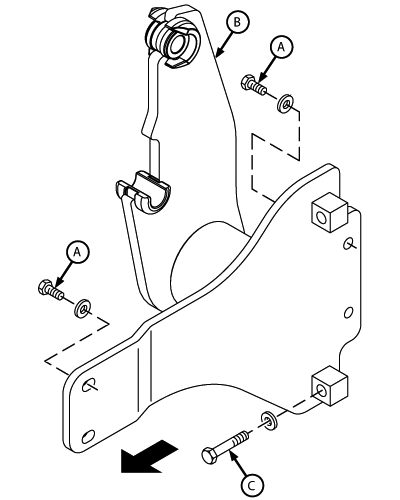

Hardware for John Deere front loader brackets
Item	Designation	Width across flats	Torque	Standard	Thread	Length	Identification / Grade
A	4 cap screws	30 mm	530 N•m (390 lb.-ft.)	ISO4017	M20 x 2.5	55 mm (2.1 in.)	10.9
B	Weight of front loader bracket, 70 kg (154 lb)	-	-	-	-	-	-
C	2 cap screws	30 mm	610 N•m (450 lb.-ft.)	JDS121	M20 x 2.5	100 mm (3.9 in.)	10.9

Using a suitable hoist, position the front loader brackets on the main frame of the tractor and tighten the screws to the specified torque.

A front loader checked and approved by John Deere is available for purchase. When installing John Deere front-loader brackets, use appropriate hardware only, as shown in the illustration above. Comply also with Operator's Manual and Installation Instructions of the front loader.
