Replacing Rotary Beacon Light Bulb

LV9693-UN-19AUG04

Cab

LV9694-UN-19AUG04

Cab

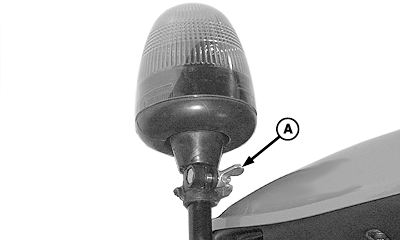

A - Wing Nut

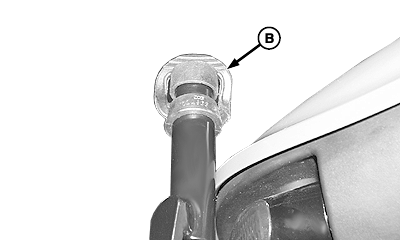

B - Rubber Cap

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See Handling Halogen Light Bulbs Safety in this section.)

1. Loosen wing nut (A) and remove rotary beacon light assembly.

2. Install rubber cap (B).

3.
   LV9695-UN-19AUG04


   LV9696-UN-19AUG04


   LV9697-UN-19AUG04

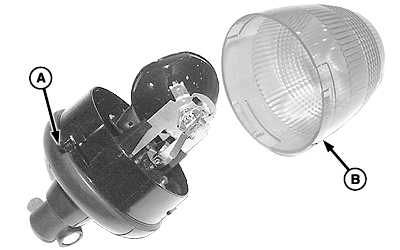

   A - Tab

   B - Lens

   C - Tab

   D - Retaining Spring

   E - Bulb

   Depress tab (A) and rotate lens (B) counterclockwise to remove.

---




4. Pull tab (C) away from bulb.

5. Unlatch retaining spring (D) and remove light bulb (E).

6. Install new bulb in reverse order of removal.
