Operate Transmission — PR

CAUTION: Leaving transmission in gear with engine stopped WILL NOT prevent tractor from moving. Put transmission speed shift lever (A) in PARK and electrohydraulic directional reverser lever in NEUTRAL before dismounting.

PY14446-UN-20OCT12

Cab

PULV004928-UN-18JUN09

Cab

P17958-UN-02MAY16

Gear Shift Pattern

PY25151-UN-18JUN15

Range Shift Pattern

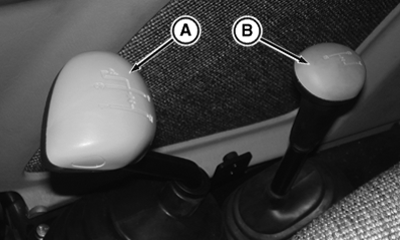

A - Gear Shift Lever

B - Range Shift Lever

C - Reverser Lever

Speed shift lever (A) provides four forward and reverse travel speeds (1, 2, 3, 4).

Range shift lever (B) provides three forward and reverse speed ranges (A, B, and C).

Reverser lever (C) provides travel direction (forward or reverse).

When using range and speed shift levers in different combinations, 12 forward and reverse speeds are available.

1. When starting tractor, put reverser lever in neutral and depress clutch pedal.

   NOTE: If reverser lever (C) is not in NEUTRAL, and/or speed shift lever (A) is in position except NEUTRAL or PARK, and/or range shift lever (B) is not in NEUTRAL, tractor will not start. Put reverser lever (C), speed shift lever (A) and range shift lever (B) in NEUTRAL to start tractor.

   NOTE: While starting tractor see Before Starting the Engine and Starting the Engine in Engine Operation section.

2. IMPORTANT: To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

   Depress clutch pedal and stop tractor before shifting range shift lever.

3. Use reverser lever (C) to select forward or reverse travel direction. You can change travel direction without depressing the clutch pedal.

4. Depress clutch pedal when shifting speed. Speed shifts (1, 2, 3, 4) can be made on­the­go, without stopping. Release clutch pedal gradually to take up load smoothly.

   NOTE: See Instrument Cluster (Gauges and Indicator Lights) — PR in Controls and Instruments section for instrument panel indicators.
