Machine Dimensions — OOS

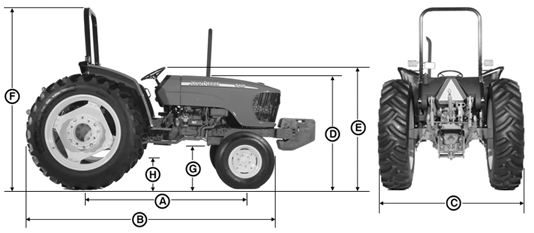

P13949-UN-19JAN06

	5076E		5082E		5090E
	2WD	4WD	2WD	4WD	2WD	4WD
STANDARD TIRES
Front Rear	10 X 16 15.5 X 38	11.2 X 24 15.5 X 38	10 X 16 18.4 X 30	12.4 X 24 18.4 X 30	10 X 16 18.4 X 30	12.4 X 24 18.4 X 30
A - STANDARD WHEELBASE	2179 mm 85.8 in.	2179 mm 85.8 in.	2179 mm 85.8 in.	2179 mm 85.8 in.	2179 mm 85.8 in.	2179 mm 85.8 in.
B - OVERALL LENGTH1
Not including draft links and front counterweights.	3586 mm 141.2 in.	3586 mm 141.2 in.	3586 mm 141.2 in	3586 mm 141.2 in	3586 mm 141.2 in	3586 mm 141.2 in
C - OVERALL WIDTH (outside edge of tires)
48 in. tread setting	1938 mm 76.3 in.	1938 mm 76.3 in.	2082 mm 82 in	2082 mm 82 in	2082 mm 82 in	2082 mm 82 in
D - HEIGHT TO TOP OF HOOD	1678 mm 66.0 in.	1666 mm 65.6 in.	1785 mm 70.3 in.	1684 mm 66.3 in	1785 mm 70.3 in.	1684 mm 66.3 in
E - HEIGHT TO TOP OF STEERING WHEEL	1816 mm 71.5 in	1816 mm 71.5 in	2028 mm 79.8 in	2028 mm 79.8 in	2028 mm 79.8 in	2028 mm 79.8 in
F - HEIGHT TO TOP OF ROPS	2599 mm 102.3 in	2599 mm 102.3 in	2586 mm 101.8 in	2586 mm 101.8 in	2586 mm 101.8 in	2586 mm 101.8 in
G - FRONT AXLE CROP CLEARANCE	565 mm 22.2 in	453 mm 17.8 in	565 mm 22.2 in	360 mm 14.2 in	565 mm 22.2 in	360 mm 14.2 in
H - HEIGHT TO TOP OF DRAWBAR	583 mm 23 in	583 mm 23 in	556 mm 21.9 in	556 mm 21.9 in	556 mm 21.9 in	556 mm 21.9 in
APPROX. SHIPPING WEIGHT
With standard equipment	2600 kg 5732.0 lb	2840 kg 6261.1 lb	2640 kg 5820.2 lb	3000 kg 6613.8 lb	2640 kg 5820.2 lb	3000 kg 6613.8 lb

	5076EL		5090EL		5090EH
	2WD	4WD	2WD	4WD	2WD	4WD
STANDARD TIRES
Front Rear	˗	12.5/80 x 18 16.9 x 24	˗	12.5/80 x 18 16.9 x 24	˗	13.6 x 38 13.6 x 38
A - STANDARD WHEELBASE	˗	2179 mm 85.8 in.	˗	2179 mm 85.8 in.	˗	2179 mm 85.8 in.
B - OVERALL LENGTH1
Including draft links	˗	3586 mm 141.2 in.	˗	3586 mm 141.2 in.	˗	3586 mm 141.2 in.
C - OVERALL WIDTH (outside edge of tires)
48 in. tread setting	˗	1930 mm 76 in	˗	1930 mm 76 in	˗	2466 mm 97 in
D - HEIGHT TO TOP OF HOOD	˗	1589 mm 62.5 in	˗	1589 mm 62.5 in	˗	2012 mm 79 in
E - HEIGHT TO TOP OF STEERING WHEEL	˗	1680 mm 66.1 in	˗	1680 mm 66.1 in	˗	2315 mm 91.1 in
F - HEIGHT TO TOP OF ROPS	˗	2502 mm 98.5 in	˗	2502 mm 98.5 in	˗	2899 mm 114.1 in
G - FRONT AXLE CROP CLEARANCE	˗	376 mm 14.8 in	˗	376 mm 14.8 in	˗	690 mm 27.1 in
H - HEIGHT TO TOP OF DRAWBAR	˗	447 mm 17.6 in	˗	447 mm 17.6 in	˗	843 mm 33.2 in
APPROX. SHIPPING WEIGHT
With standard equipment	˗	2670 kg 5886.3 lb	˗	2670 kg 5886.3 lb	˗	3235 kg 7131.9 lb

NOTE: All dimensions are of a machine equipped with standard tires.

NOTE: Specifications and design subject to change without notice.
