Tread Settings—Multi-Position Rear Wheels

Wheel tread on rear axle with multi-position wheels is adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread is also adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

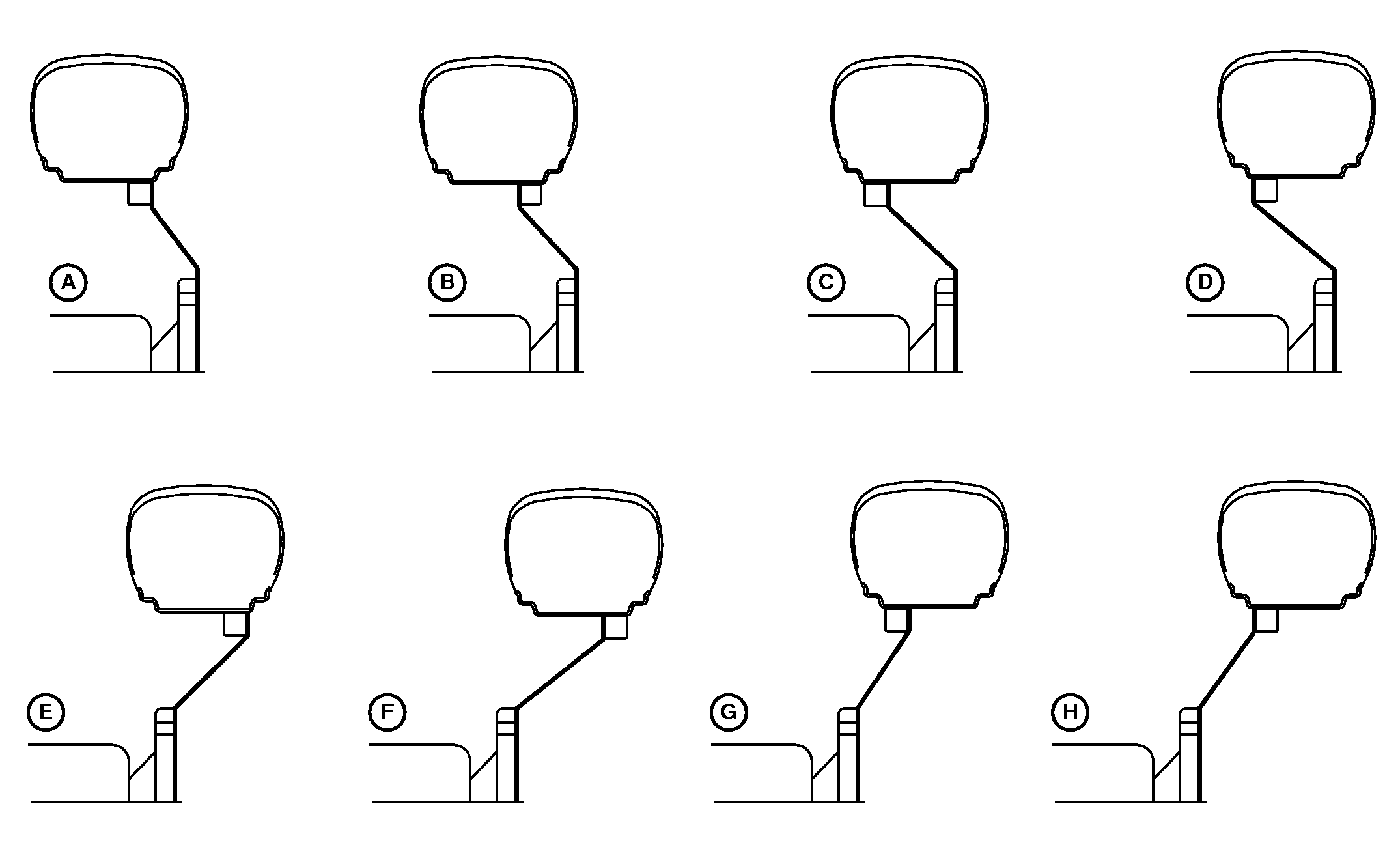

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams on the facing page.

A study of these diagrams, before attempting to change tread settings, saves unnecessary labor.

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk bolts and rear wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd.) and tighten again.

Item	Measurement	Specification
Rear Rim to Disk (18.4-30, 16.9-30, 16.9-24 and 14.9-24)	Torque	245 N·m (180 lb.-ft.)
Rear Rim to Disk (15.5-38 and 13.6-38)	Torque	325 N·m (240 lb.-ft.)
Rear Steel Wheel Disk to Hub M20 Bolts	Torque	500 N·m (370 lb.-ft.)

MULTI-POSITION REAR WHEELS TREAD WIDTH Centerline-to-Centerline
Tire	Diagram
	A	B	C	D	E	F	G	H
13.6 X 38, R1, 6 PR	INT1	INT1	INT1	1418 mm (55.82 in.)	1514 mm (59.60 in.)	1617 mm (63.66 in.)	1715 mm (67.51 in.)	1818 mm (71.57 in.)
15.5 X 38 R1 8 PR	INT1	INT1	INT1	INT1	1540 mm (60.6 in.)	1644 mm (64.7 in.)	1689 mm (66.5 in.)	1793 mm (70.6 in.)
16.9 X 24 R1 8 PR	INT1	INT1	INT1	INT1	1507 mm (59.3 in.)	1615 mm (63.6 in.)	1716 mm (67.5 in.)	1821 mm (71.7 in.)
16.9 X 30 R1 6 PR	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1614 mm (63.5 in.)	1714 mm (67.5 in.)	1816 mm (71.5 in.)
18.4 X 30 R1 6 PR	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1614 mm (63.5 in.)	1714 mm (67.5 in.)	1816 mm (71.5 in.)
18.4 X 30 R2 10 PR	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1614 mm (63.5 in.)	1714 mm (67.5 in.)	1816 mm (71.5 in.)
420/85R30	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1614 mm (63.5 in.)	1714 mm (67.5 in.)	1816 mm (71.5 in.)
460/85R30	INT1	INT1	INT1	INT1	1512 mm (59.5 in.)	1614 mm (63.5 in.)	1714 mm (67.5 in.)	1816 mm (71.5 in.)

MULTI-POSITION REAR HIGH CROP WHEELS TREAD WIDTH Centerline-to-Centerline
Tire	Diagram
	A	B	C	D	E	F	G	H
13.6 X 38 R2 6 PR	INT1	1516 mm (59.6 in.)	1626 mm (64.0 in.)	1721 mm (67.7 in.)	1826 mm (71.9 in.)	1916 mm (75.4 in.)	2026 mm (79.7 in.)	2122 mm (83.5 in.)
13.6 X 38 R2 6 PR (with spacers)	INT1	1916 mm (75.4 in.)	2026 mm (79.8 in.)	NR2	NR2	NR2	NR2	NR2
230/95R48	INT1	1519 mm (59.8 in.)	1624 mm (63.9 in.)	1723 mm (67.8 in.)	1820 mm (71.6 in.)	1919 mm (75.5 in.)	2024 mm (79.7 in.)	2123 mm (83.5 in.)
230/95R48 (with spacers)	INT1	1919 mm (75.5 in.)	2032 mm (80.0 in.)	NR2	NR2	NR2	NR2	NR2

LV8610-UN-28AUG03
