STOP, Service Alert, and Information Indicators

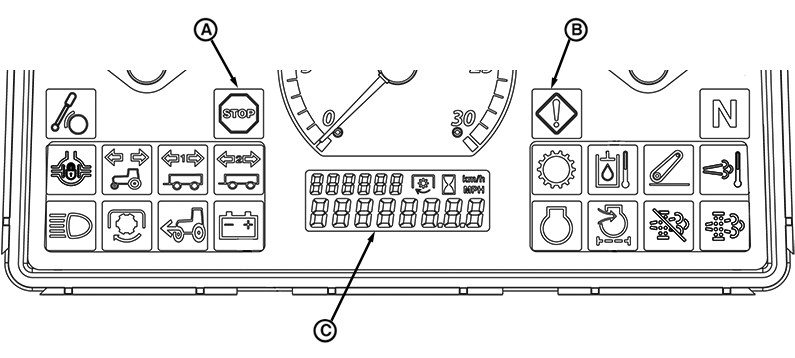

P17945-UN-29APR16

A - STOP Indicator

B - Service Alert Indicator

C - Information Display

On-Board diagnostic communication is conducted with indicator lights and the information display (C).

NOTE: STOP, service, and information indicators are accompanied by an informative diagnostic code on the information display.

Indicator (A) for STOP: The light flashes and an uninterrupted alarm signal sounds. A serious malfunction has occurred, requiring immediate attention or the tractor will be damaged. If the control software detects a malfunction or a status “out of the permissible range”, a diagnostic trouble code (DTC) is saved. See the On-Board Diagnostic (OBD) Tool information in this section.

IMPORTANT: Engine shuts off automatically if STOP signal is received when operator is out of the seat for longer than 3 seconds and the transmission control is in park position. The information display can be reset by switching the key switch off and back on again.

Correct problem before restarting the engine. Visit the John Deere™ dealer if the problem cannot be solved.

Indicator (B) for Service Alert: The light flashes and the alarm signal sounds five times and indicates a performance problem or malfunction that has to be eliminated as soon as possible. Continued operations during a service alert can result in the STOP indicator lighting up. If appropriate corrective action is not taken soon (maintenance, repair, change of operating mode), a significant reduction in performance and/or machine damage will occur.

Whenever a STOP or Service Alert indicator is displayed, switch the transmission to the park position and shut down the engine.
