On-Board Diagnostic Tool

P17964-UN-05MAY16

SAE Lighting

P17965-UN-05MAY16

EEC Lighting

P17842-UN-09FEB16

(A) Information Display

P17946-UN-28APR16

P17947-UN-28APR16

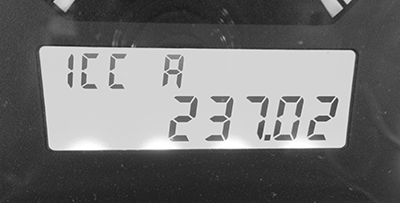

Diagnostic Trouble Code Mode

P17948-UN-28APR16

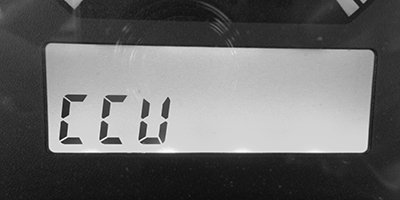

Diagnostic Address Mode

NOTE: Information display accesses diagnostic mode when machine warning switch (D) is disengaged.

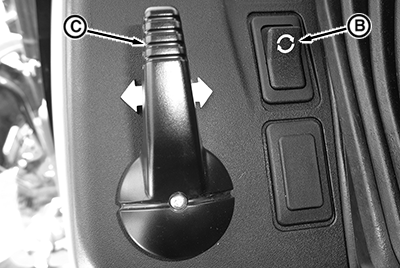

1. Hold roll mode switch (B) for 5 seconds.

2. Two modes are displayed on information display (A):

   • Diagnostic Trouble Codes Mode
   • Diagnostic Address Mode



   NOTE: Control unit acronyms are shown in alphabetical order (CCU, ICC, PTR).

3. Use turn signal lever (C) to navigate through the modes.

4. To exit from On-Board Diagnostic Tool, use one of the following methods:

   • Hold roll mode switch for 5 seconds.
   • Cycle the instrument cluster power.
   • Enable warning lights.



CONTROL	COMMAND
A - Information Display	Communicates error, fault, or information messages.
B - Roll Mode Switch	Enter or select in information display menus.
C - Turn Signal Lever	Scroll through information display menus (left goes back in menu and right goes next in menu).
