Opening Hood

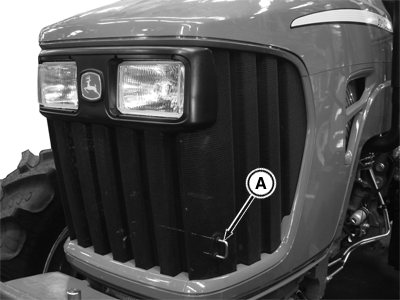

PY15492-UN-08NOV12

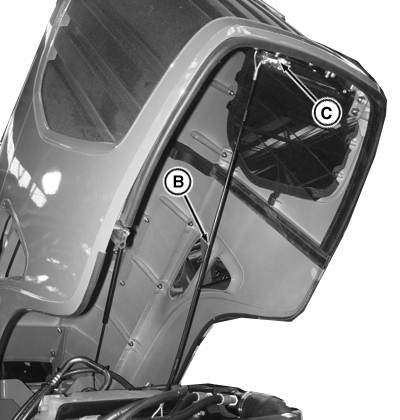

PY16428-UN-23OCT12

A - Hood latch release

B - Cable

C - Hood latch

1. Push hood latch release (A) “in” to unlock hood.

2. Raise hood and unlatch the cable (B).

3. Insert the hood cable (B) into the hood latch (C) to hold hood in raised position.
