Check Hoses and Hose Clamps

PY17170-UN-09NOV12

PY16431-UN-09NOV12

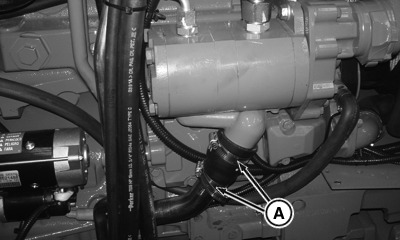

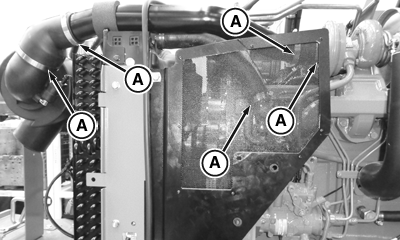

A - Hose Clamps

Service Interval — Every 1000 hours

Check the following systems hose for tightness:

• Air Cleaner to engine intake or turbocharger
• Engine Cooling
• Hydraulics
• Fuel
• Air Conditioning and Heater

Check all hoses for cracks which could cause leaks or possible failure. Replace as necessary.
