Machine Dimensions — Cab

P13950-UN-20JAN06

	5082E		5090E		5090EH
	2WD	4WD	2WD	4WD	2WD	4WD
STANDARD TIRES
Front Rear	10 X 16 18.4 X 30	12.4 X 24 18.4 X 30	10 X 16 18.4 X 30	12.4 X 24 18.4 X 30	˗	13.6 X 38 13.6 X 38

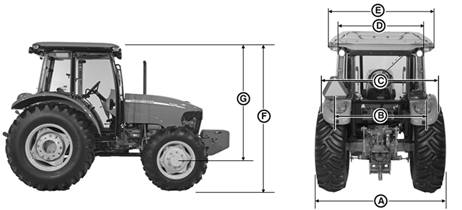

A - OVERALL WIDTH (outside edge of tires)
44-in.tread setting (inner tire faces)	2082 mm 82 in	2082 mm 82 in	2082 mm 82 in	2082 mm 82 in	˗	2466 mm 97 in
B - CAB WIDTH AT BELT LINE
Front	1262 mm 49.7 in	1262 mm 49.7 in	1262 mm 49.7 in	1262 mm 49.7 in	˗	1262 mm 49.7 in
Rear	1521 mm 59.9 in	1521 mm 59.9 in	1521 mm 59.9 in	1521 mm 59.9 in	˗	1521 mm 59.9 in
C - CAB WIDTH ACROSS FENDERS	1878 mm 73.9 in	1878 mm 73.9 in	1878 mm 73.9 in	1878 mm 73.9 in	˗	1878 mm 73.9 in
D - CAB WIDTH BELOW ROOF
Front	1179 mm 46.4 in	1179 mm 46.4 in	1179 mm 46.4 in	1179 mm 46.4 in	˗	1179 mm 46.4 in
Rear	1395 mm 55 in	1395 mm 55 in	1395 mm 55 in	1395 mm 55 in	˗	1395 mm 55 in
E - CAB ROOF WIDTH	1723 mm 67.8 in	1723 mm 67.8 in	1723 mm 67.8 in	1723 mm 67.8 in	˗	1723 mm 67.8 in
F - HEIGHT FROM GROUND
To top of cab	2613 mm 102.9 in	2613 mm 102.9 in	2613 mm 102.9 in	2613 mm 102.9 in	˗	2900 mm 114.2 in
G - HEIGHT FROM CENTERLINE OF REAR AXLE
To top of cab	2052 mm 80.8 in	2156 mm 84.9 in	2052 mm 80.8 in	2156 mm 84.9 in	˗	2156 mm 84.9 in
APPROX. SHIPPING WEIGHT
With standard equipment	3044 kg 6710.9 lb	3220 kg 7098.9 lb	3044 kg 6710.9 lb	3220 kg 7098.9 lb	˗	NA1
