Replace Work Light Bulb

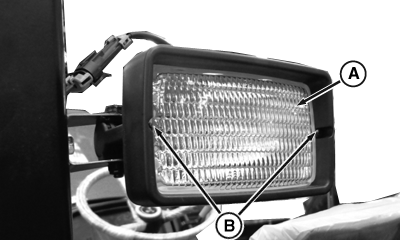

  1. PY16634
    PY16634-UN-06AUG12

    Loosen mounting cap screw and rotate flood light (A) outward to access cover fastening screw. Remove screw (B).


  2. Remove the cover and bulb from the housing.

  3. Remove all wires from bulb.

  4. Rotate bulb counterclockwise to remove.

  5. Reverse the steps in this procedure to reassemble the work light.

SP21231,000040F-19-20120806
