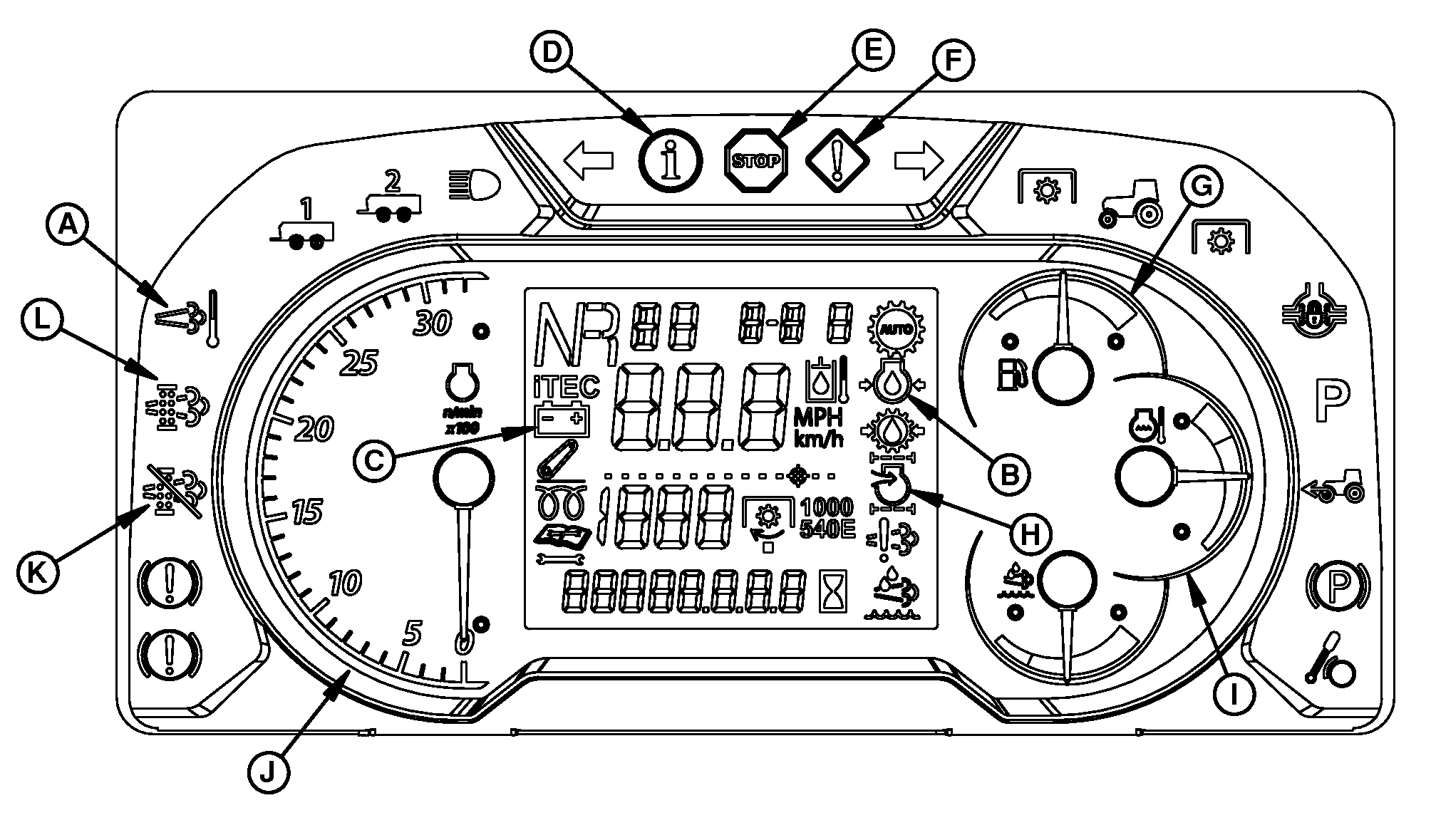

Check Engine Indicators and Gauges

PY42056-UN-15MAY17

A - Exhaust Emissions Temperature Indicator

B - Engine Oil Filter Pressure Indicator

C - Charging System Indicator

D - Information Alert Indicator

E - Stop Indicator

F - Warning Indicator

G - Fuel Level Indicator Gauge

H - Engine Air Filter Indicator

I - Engine Coolant Temperature Gauge

J - Tachometer

K - Auto Cleaning Disabled Indicator

L - Exhaust Filter Indicator

If coolant temperature gauge (I) indicates hot, stop engine, and determine the cause.

If oil filter pressure indicator (B) or charging system indicator (C) fail to go out, stop engine, and determine the cause.

5075M is not equipped with DEF or DEF gauge.

Exhaust Emissions Temperature Indicator (A)

If exhaust temperature indicator remains illuminated, the presence of high temperatures inside the exhaust filter exist, which allow active filter cleaning to occur.

Engine Oil Filter Pressure Indicator (B)

NEVER operate engine without sufficient oil pressure. If oil filter pressure indicator stays illuminated for longer than 5 seconds, under normal operating conditions, stop engine and check for cause.

Oil filter pressure indicator stays illuminated when abnormal oil pressure is present.

If oil filter pressure indicator remains illuminated after starting engine, stop engine immediately.

Check engine oil level. If low oil level is not the problem, see your John Deere dealer.

Charging System Indicator (C)

If charging system indicator remains illuminated for longer than 5 seconds after engine is started, stop engine immediately.

Check battery connections. Check fan belt tension.

Information Alert Indicator (D)

When a diagnostic trouble code (DTC) is present, information alert indicator illuminates. If necessary, have your John Deere dealer diagnose vehicle.

STOP Indicator (E)

Correct problems before restarting.

STOP indicator flashes and alarm sounds continuously to alert operator that a serious malfunction has occurred. Immediate attention is required or damage to machine occurs.

Immediately stop operations, reduce engine to idle, then Shut Off engine.

Warning Indicator (F)

Correct problems before restarting.

Warning indictor illuminates when a malfunction occurs (review error message in information display). If necessary, have your John Deere dealer diagnose vehicle.

Fuel Level Indicator Gauge (G)

Fuel fill icon illuminates, amber, when fuel level is low.

Refuel before fuel level gauge reaches empty.

Check fuel lines and fuel filters. If machine is allowed to run until tank is empty, bleed air out of the fuel system.

Engine Air Filter Indicator (H)

If air filter indicator illuminates while engine is running, stop engine immediately.

Clean out plugged air cleaner.

Engine Coolant Temperature Gauge (I)

If coolant temperature gauge reaches red zone, stop engine immediately.

Check level of coolant in the recovery tank and radiator when engine cools. Also check grille, radiator, and radiator screen for debris. Check fan belt tension.

Tachometer (J)

Engine revolutions per minute (rpm) are represented in hundreds.

Auto Cleaning Disabled Indicator (K)

If auto cleaning disabled indicator remains illuminated, the exhaust filter cleaning switch has been disabled.

Exhaust Filter Indicator (L)

If exhaust filter indicator remains illuminated, the exhaust filter needs cleaning.
