Auxiliary Power Strip

RXA0153603-UN-29AUG16

RXA0131998-UN-06MAY13

A - Auxiliary Power Strip

B - Battery Power (Unswitched)

C - Ground

D - Battery Power (Switched)

Power strip is not a surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

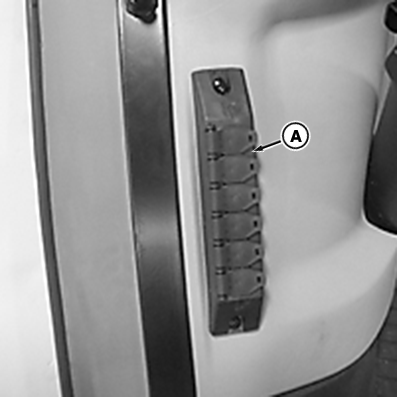

Power strip (A) provides six 12 volt grounded power outlets for use connecting auxiliary equipment.

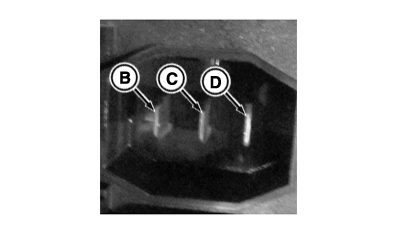

Positive symbol (+) on the cover indicates that circuit is unswitched (B). Negative symbol (-) on the cover indicates the circuit ground (C). Circle symbol (O) on the cover indicates that circuit is switched (D). Outlets are protected by a 30 A fuse.

Various adapters are available from your John Deere dealer. Adapters plug directly into the power strip. To change to switched power on adapter, remove the small tab at end of the slot on plug and rotate plug 180°.
