Mechanical Front-Wheel Drive (MFWD On/Auto/Brake Assist)

RW13093-UN-07DEC88

LV9489-UN-13AUG04

OOS shown; Cab Similar and Located on Right-Hand Console

LV22015-UN-19AUG14

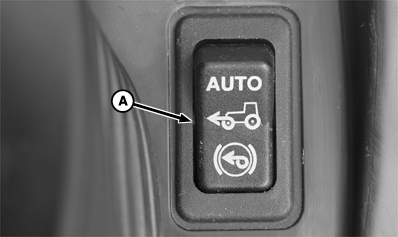

A - MFWD Switch with Auto Engage and Brake Assist

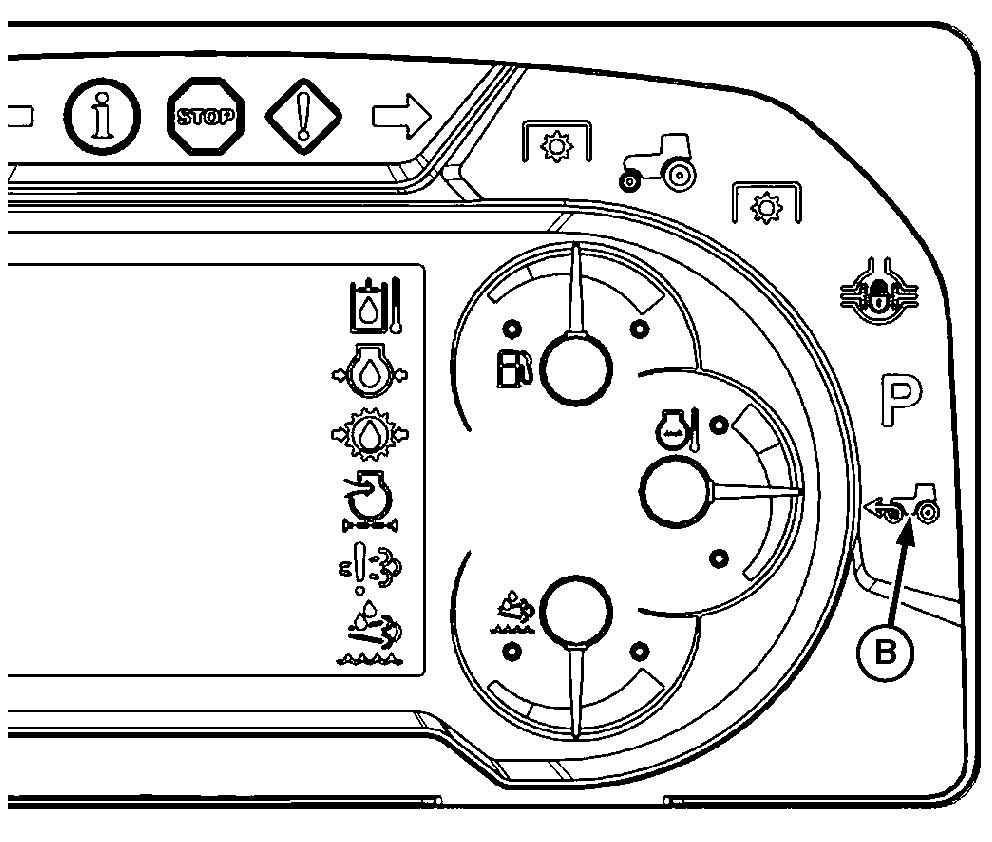

B - MFWD Indicator

Avoid personal injury or death. Reduce speed when driving on icy, wet, or graveled surfaces. Use correct ballast to avoid loss of steering control.

MFWD greatly increases traction, but it does not increase the stability of the machine. Use extra caution on slopes.

If the machine is under full load and mired down, engaging MFWD while tires are spinning has the potential to cause damage. Reducing the load and slowing wheel speed before engaging MFWD is highly recommended.

MFWD can be engaged and disengaged in all gears (forward and reverse) during operation and under full load. Switch (A) has three operating positions.

MFWD Selection	MFWD Switch Position	MFWD On	MFWD Off	MFWD Indicator	Recommended for:
Auto	Top half of switch pressed down.	Both brake pedals are depressed at any speed. Speed is below 19 km/h (11.8 mph). Neither brake pedal is individually depressed.	Either brake pedal is individually depressed. Speed is above 23 km/h (14 mph).	Illuminates when engagement conditions are met.	Transport where MFWD is needed.
On	Switch in center position.	Always.	Never.	Always illuminated.	Field uses only at speeds below 23 km/h (14.3 mph).
Brake Assist	Bottom half of switch pressed down.	Speed above 5 km/h (3.1 mph) and both brake pedals are depressed.	Always unless both brake pedals are depressed above 5 km/h (3.1 mph).	Illuminates when engagement conditions are met.	Normal transport where MFWD is not needed.
