Change Open Crankcase Vent Filter (OCV)

RXA0155752-UN-23NOV16

Right Side of 4.5 Liter 4 Cylinder Engine

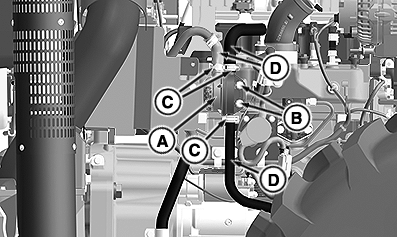

RXA0154379-UN-22FEB17

Right Side of 2.9 Liter 3 Cylinder Engine

A - OCV Filter Housing

B - Cap Screws

C - Hose Clamps

D - Hoses

SERVICE INTERVAL
	Annually

1. Remove cap screws (B) and remove OCV filter housing (A).

2. Loosen clamps (C) and remove hoses (D).

3. For 4.5 Liter 4 Cylinder Engine:

   1. Unscrew filter housing and remove filter.

   2. Clean filter housing.

   3. Install new filter and reassemble filter housing.

4. For 2.9 Liter 3 Cylinder Engine, replace assembly.

5. Reinstall hoses to the filter housing and tighten clamps.

6. Reinstall filter housing and tighten cap screws to proper torque.

   Cap Screw	Torque	70 N·m (52 lb·ft)
