Replace Cab Fuses

LV22822-UN-15AUG14

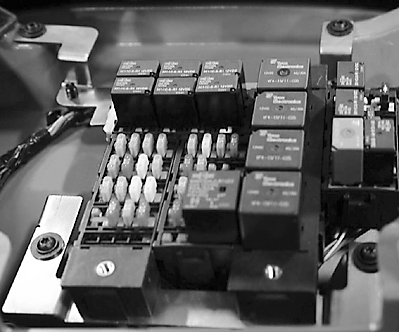

Main Fuse and Relay Load Center (Left Console)

LV14697-UN-25AUG11

Fuse/Relay Block

A - Cover

Do not replace the original fuse with a higher rated fuse or machine damage occurs. If the original size fuse does not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

A fuse and relay reference label is provided under cover.

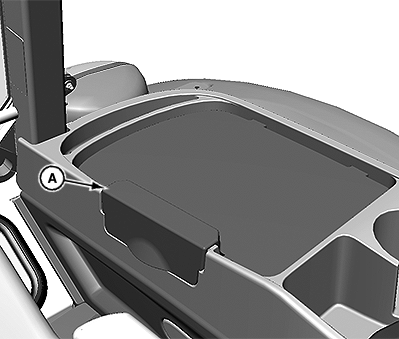

Remove cover (A) to access main fuse and relay load center and fuse/relay block.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 Amp	Orange
10 Amp	Red
15 Amp	Blue
20 Amp	Yellow
30 Amp	Green

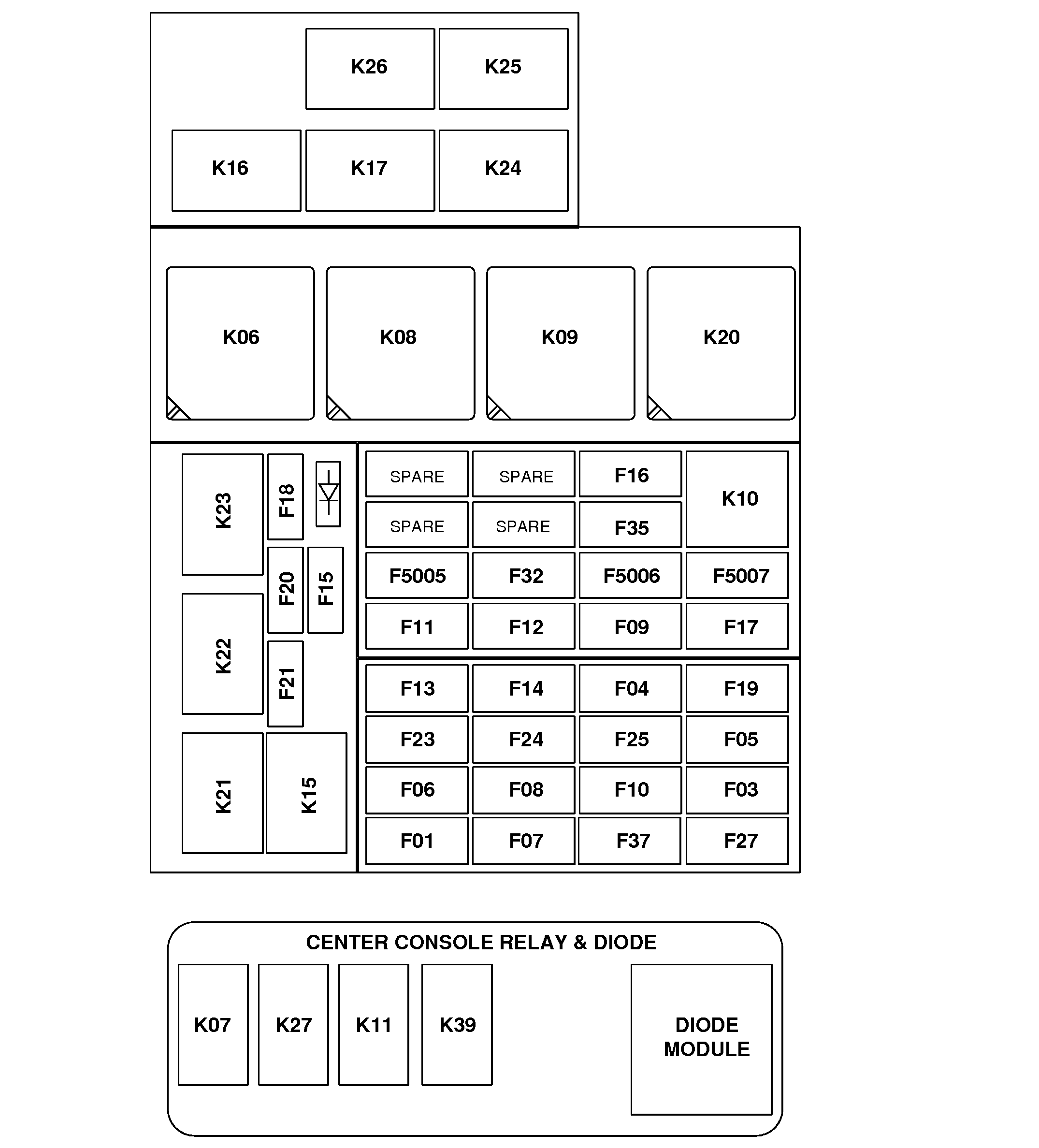

Most fuses and relays are located in the main load center as shown. Additional relays and a diode block are located inside the front console.

RXA0158315-UN-21MAR17

F01 - Key Switch 30A

F03 - Dome Light/Subwoofer 15A

F04 - Light Switch 20A

F05 - Head Light 30A

F06 - Junction Block Unswitched Power 30A

F07 - Instrument Cluster 20A

F08 - Instrument Cluster 20A

F09 - Turn Signal 20A

F10 - Implement Power 30A

F11 - Junction Block Switched Power 30A

F12 - Radio 10A

F13 - Rear Worklight 30A

F14 - Front Worklight 30A

F15 - Tail Light 15A

F16 - Brake Lights 20A

F17 - Mid-SCV Power 20A

F18 - ELX Power 10A

F19 - Transmission Control Unit 10A

F20 - Cab Control Unit Sensors 10A

F21 - Transmission Controller 10A

F23 - Heating, Ventilation, and Cooling/Right Blower 30A

F24 - Wiper 25A

F25 - Left Blower 20A

F27 - Backup Alarm 5A

F32 - Electro-Hydraulic Hitch 10A

F35 - Backup Alarm Switch, Air Seat, Modular Telematics Gateway 30A

F37 - Radio 5A

F5005 - Engine Control Unit Power 30A

F5006 - Engine Control Unit Power 25A

F5007 - Engine Control Unit Power 25A

K06 - Trailer Power Relay

K07 - Accessory Power Relay

K08 - Rear Worklight Relay

K09 - Front Worklight Relay

K10 - Accessory Power 2 Relay

K11 - Neutral Relay (PowrReverser Only)

K15 - Electro-Hydraulic System Relay

K16 - Not Neutral Relay (PowrReverser Only)

K17 - Transmission Enable Relay (PowrReverser Only)

K20 - Heating, Ventilation, and Cooling Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K24 - Forward HI Relay (PowrReverser Only)

K25 - Mid-SCV Retract Relay

K26 - Mid-SCV Extend Relay

K27 - Head Light Relay

K39 - Brake Light Relay

Diode Module - Block of Diodes

Diode Symbol - Single Diode

Spare - Extra Fuses 10, 20, 25 and 30 Amp
