Install Wheel Spacer

Front and rear wheel spacers are available. See your John Deere dealer.

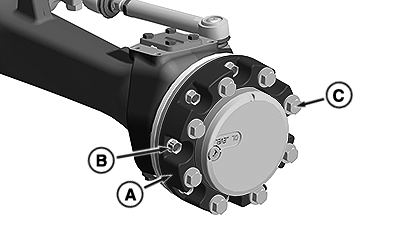

RXA0154078-UN-17NOV16

A - Spacer

B - Flange Nut

C - Cap Screws

Any time hardware is loosened, tighten to specified torque.

1. Install the spacer (A) over the hub.

2. Lubricate and install flange nuts (B).

3. Tighten to specified torque.

   Flange Nut	Torque	300 N·m (221 lb·ft)

4. Install wheel and tighten cap screws (C) to specified torque. See “Tighten Wheel Bolts” for the specific axle on the machine in this section.
