Operating Backhoe Auxiliary Hydraulic Functions—If Equipped

T131504E-UN-11JUL00

T131758D-UN-11JUL00

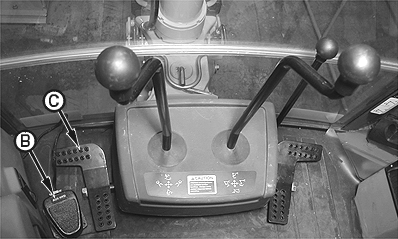

Optional Two-Lever, Six-Function Configuration Shown

A - Backhoe Auxiliary Hydraulic Function Switch

B - Backhoe Auxiliary Hydraulic Function Foot Switch

C - Backhoe Auxiliary Hydraulic Function Control Pedal

Push the backhoe auxiliary hydraulic function switch (A) to activate and deactivate backhoe auxiliary hydraulic attachments. The backhoe auxiliary hydraulic function switch (A) has three positions:

• Push the lower half to deactivate the backhoe auxiliary hydraulic function.
• Push to the middle position to transfer control to the backhoe auxiliary hydraulic function foot switch.
• Push the upper half to activate the backhoe auxiliary hydraulic function.

When the backhoe auxiliary hydraulic function switch is in the middle position, push the backhoe auxiliary hydraulic function foot switch (B) to activate and deactivate backhoe auxiliary hydraulic attachments.

When backhoe auxiliary hydraulic attachment is activated, operate backhoe auxiliary hydraulic function control pedal (C) to control the attachment. See your backhoe auxiliary hydraulic attachment operator's manual for more information.

Push the backhoe auxiliary hydraulic function switch OFF when no attachment is installed, when changing attachments, or when installed attachments are not in use.
