Replacing Fuses

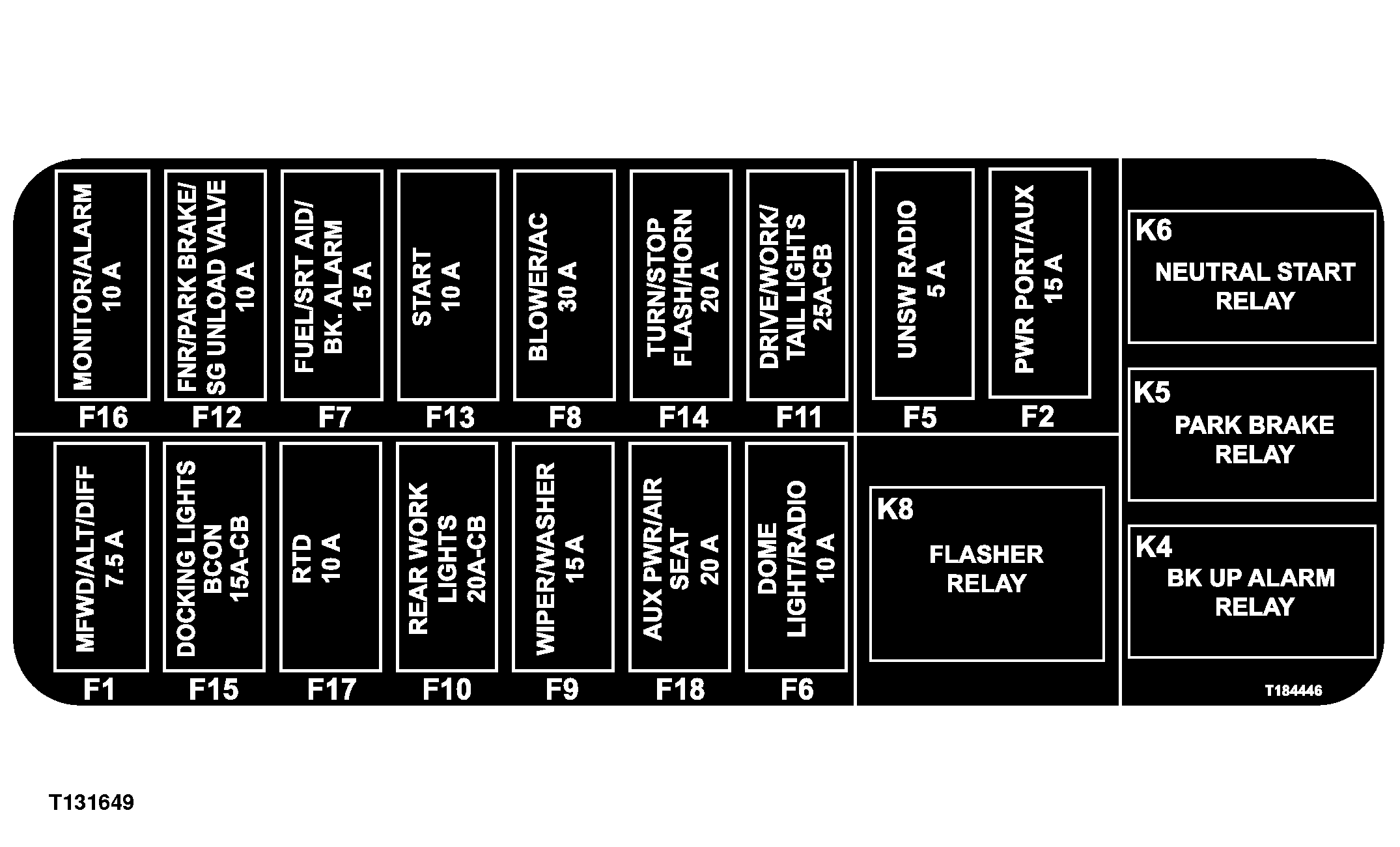

T131649-19-28SEP00

F1 - 7.5 Amp MFWD, Alternator, and Differential Lock Fuse

F2 - 15 Amp Power Port and Auxiliary Power Fuse

F5 - 5 Amp Unswitched Radio Fuse—If Equipped

F6 - 10 Amp Dome Light and Radio Fuse—If Equipped

F7 - 15 Amp Fuel Shutoff, Starting Aid, and Backup Alarm Fuse

F8 - 30 Amp Heater, Blower, and Air Conditioner Fuse—If Equipped

F9 - 15 Amp Wiper and Washer Fuse—If Equipped

F10 - 20 Amp Rear Work Lights Circuit Breaker

F11 - 25 Amp Drive Lights, Work Lights, and Tail Lights Circuit Breaker

F12 - 10 Amp FNR, Park Brake, and SG Pump Unloading Valve Fuse

F13 - 10 Amp Starter Motor Fuse

F14 - 20 Amp Turn Signals, Brake Lights, Flashers, and Horn Fuse

F15 - 15 Amp Side Docking Lights and Beacon Circuit Breaker—If Equipped

F16 - 10 Amp Monitor Panel, STOP Indicator, and Audible Alarm Fuse

F17 - 10 Amp Return-to-Dig Fuse

F18 - 20 Amp Auxiliary Power and Air Suspension Seat Fuse

K4 - Backup Alarm Relay

K5 - Park Brake Latching Relay

K6 - Neutral Start Relay

K8 - Flasher Relay

IMPORTANT:

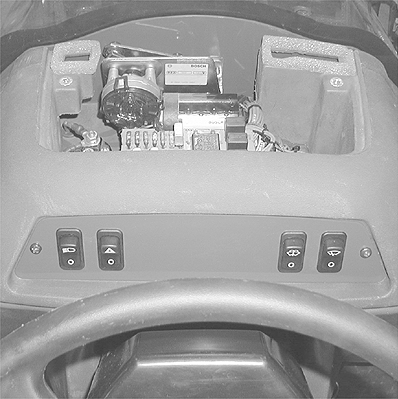

T132520B-UN-14JUL00

Steering Console Top Cover Shown Removed

The following relay is located inside steering console, near fuse block:

• K2—Accessory Relay

The following relays are located inside right-side console, behind display monitor:

• K3—Selective Flow Control Relay (410G only)
• K7—Timer Relay
• K9—SG Unloading Valve Pump Relay (310SG and 315SG only)
• K10—Mode Door Relay

The following relay is located inside right rear of engine compartment:

• K1—Start Relay
