Check Rear Axle Oil Level

1. Remove plug (A) from axle and check oil level.

2. If oil is not level to bottom of hole, add oil. (See Fuels and Lubricants chapter for type of oil.)

3. Replace plug.

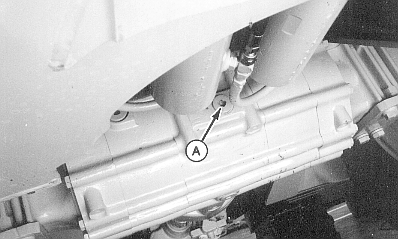

A-Plug

T104867
