Ride Control Switch and Indicator-If Equipped

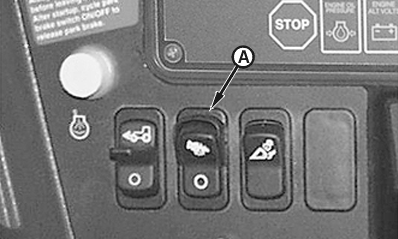

Push upper half of ride control switch (A) to activate ride control.

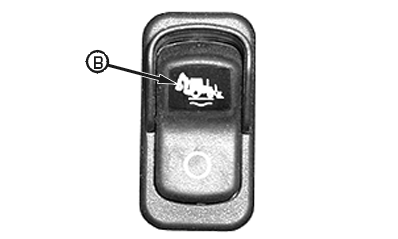

The ride control indicator (B) will light when ride control is activated.

Push lower half of ride control switch to deactivate ride control.

A-Ride Control Switch
B-Ride Control Indicator

CED,OUO1079,350 -19-12JUN00-1/1
