Defroster, Heater, and Air Conditioner Controls-If Equipped

NOTE: Blower knob; defroster, heater, and air conditioner switch; and temperature control knob must be adjusted as a group to obtain proper operation of the defroster, heater, or air conditioner.

Push the defroster, heater, and air conditioner switch (A) to the appropriate setting. The defroster, heater, and air conditioner switch has three positions:

• Push lower half to activate the air conditioner. Adjust the blower knob and temperature control knob as appropriate.
• Push to middle position to activate the heater and vent. Adjust the blower knob as appropriate. Turn the temperature control knob clockwise towards HOT for heated air, or counterclockwise to COLD for un-heated vent.
• Push upper half to activate the defroster. Adjust the blower knob and temperature control knob as appropriate.

Turn temperature control knob (C) to adjust air temperature. Turn clockwise towards HOT (red) for warmer air (best for heating and defrosting). Turn counterclockwise towards COLD (blue) for cooler air (best for venting and air conditioning).

NOTE: Use the air conditioner with the temperature control knob in a middle-to-cool position to dehumidify air without overcooling.

Turn blower knob (B) clockwise to increase blower speed or counterclockwise to reduce blower speed. The blower knob has four speed settings plus an OFF position.

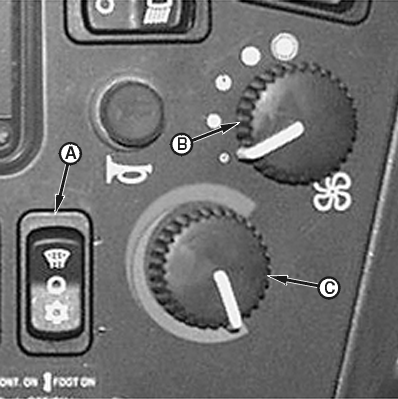

A-Defroster, Heater, and Air Conditioner Switch
B-Blower Speed Knob
C-Temperature Control Knob

CED,OUO1079,361 -19-12JUN00-1/1
