Adjusting Seat

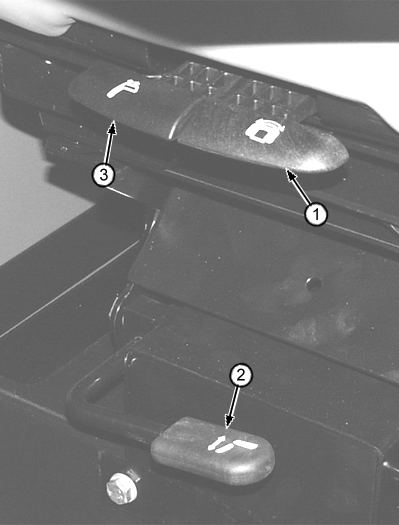

Lift pivot lever (1) UP and pivot seat. Release pivot lever to lock seat in position. Lift forward and aft lever (3) UP and slide seat to desired position. Release forward and aft lever to lock seat in position. Lift height adjustment lever (2) UP and adjust seat to desired height. Release height adjustment lever to lock seat in position. Grease seat base guide rails as needed. Use multi-purpose grease, John Deere TY2098 or equivalent.
|
|
CAUTION:
Ensure seat is locked in position before operating machine. A seat that is loose or not properly locked can cause loss of control of machine and injuries or death.
CED,OUO1079,375 -19-14JUN00-1/3 |
|
Suspension Seat-If Equipped

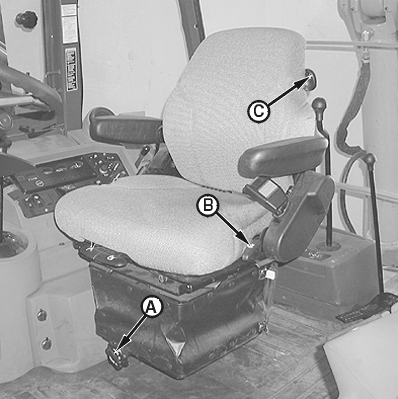

NOTE: With weight adjustment knob turned counterclockwise (-) as far as it can go and with no weight on seat, the distance to the floor from top of seat is 48 cm (19 in.). With knob turned clockwise (+) as far as it can go, the distance to floor from top of seat is 53 cm (21 in.). The distances will decrease by 5 cm (2 in.) when an 86 kg (190 lb) person sits on seat. While NOT sitting on seat, turn weight adjustment knob (A) to change seat height and ride stiffness. Lift back tilt lever (B) UP and adjust backrest to desired tilt angle. Release back tilt lever to lock backrest in position. Turn lumbar support adjustment knob (C) to position lumbar support for operator's preference. |
|
CED,OUO1079,375 -19-14JUN00-2/3 |
|
Air Suspension Seat-If Equipped

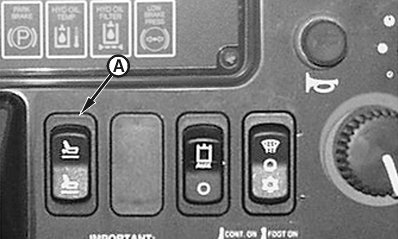

Push upper half of air suspension seat height adjustment switch (A) to increase air suspension seat height and firmness of ride. Push lower half of air suspension seat height adjustment switch to decrease air suspension seat height and firmness of ride. |
|
