Rear Windows-Cab Machines

Squeeze upper rear window latches (A) and slide upper rear window up or down.

Squeeze middle rear window latches (B) and slide middle rear window up or down.

Ensure all rear window latches lock into detent positions on window frame.

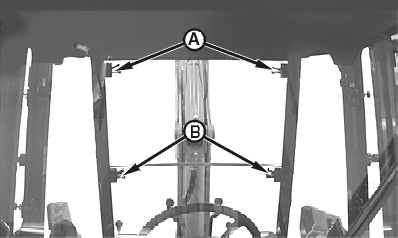

A-Upper Rear Window Latch (2 used)
B-Middle Rear Window Latch (2 used)

CED,OUO1079,378 -19-14JUN00-1/1
