Side Windows-Secondary Exits-Cab Machines

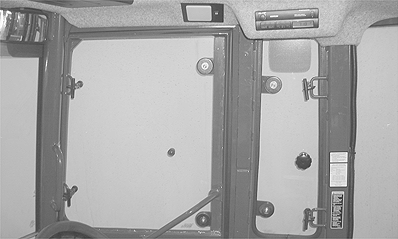

The side windows and door windows can open 180°. The door windows can be used as secondary exits.

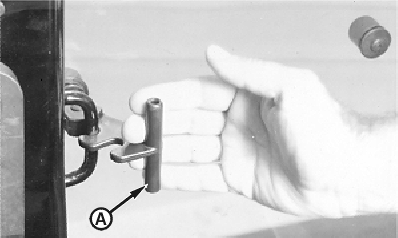

To open, pull handle (A) in and away from cab post latch.

Retain in open position against fixed window on same side by fastening knob (B) into socket (C). Turn knob until tension is felt to prevent window from swinging during operation.

A-Handle (8 used)
B-Fastening Knob (2 used)
C-Socket (2 used)

CED,OUO1079,381 -19-14JUN00-1/1
