Starting Fluid-Cold Weather Start Aid-If Equipped

causym CAUTION: Prevent possible injury from exploding container. Starting fluid is highly flammable. Keep container away from heat, sparks, and open flame. Contents are pressurized. Do not puncture or incinerate container. Remove can from machine if engine does not need starting fluid.

causym CAUTION: Remove can from container and install container upside-down to protect start aid components from dust.

IMPORTANT: Prevent damage to engine. Use starting aid when temperatures are below 0°C (32°F) and only when engine is COLD.

Using Start Aid

IMPORTANT: To avoid engine damage, push and hold start aid button only when engine is cold and cranking. Starting fluid is being injected into engine as long as the start aid button is held.

NOTE: If equipped with a high pressure KBI ® cold weather starting system, press and hold start aid button (A) to start engine.

NOTE: Crank engine for 30 seconds maximum, allowing two minutes between cranking periods.

While cranking engine, push start aid button (A).

Replacing Starting Aid Can

1. Close engine hood. Raise front loader boom and install loader boom service lock. (See Loader Boom Service Lock Periodic Maintenance chapter for installation instructions.)

2. Open engine hood. (See Opening and Closing Engine Hood in Periodic Maintenance chapter.)

TS281
T131504P
T132014B

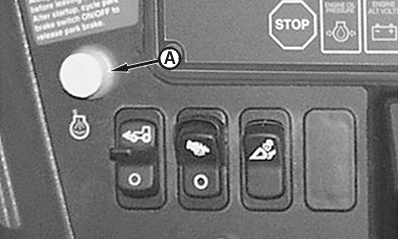

A-Start Aid Button

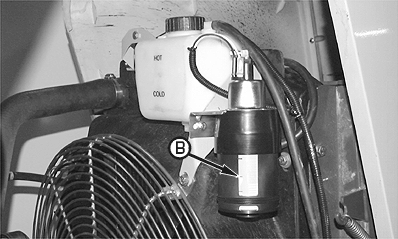

B-Start Aid Can

KBI is a registered trademark of Kold Band International LTD Company

CED,OUO1079,393 -19-19JUN00-1/2

3. Turn container counterclockwise to remove.

4. Remove start aid can (B) from container.

5. Remove safety cap and spray button from new start aid can, and install can into container.

6. Install container clockwise into base.

7. Close engine hood.

CED,OUO1079,393 -19-19JUN00-2/2
