Operating Extendible Dipperstick Lock-If Equipped

causym CAUTION: To prevent serious injury, always install locking pin from ground.

Always lower backhoe to ground and turn engine OFF before removing or installing extendible dipperstick locking pin.

Disengaging Extendible Dipperstick Lock

1. Remove quick-lock pin from extendible dipperstick locking pin (A).

2. Remove extendible dipperstick locking pin from locking position (C) and install extendible dipperstick locking pin in storage position (B).

3. Install quick-lock pin on extendible dipperstick locking pin.

Engaging Extendible Dipperstick Lock

1. Remove quick-lock pin from extendible dipperstick locking pin (A).

2. Remove extendible dipperstick locking pin from storage position (B) and install extendible dipperstick locking pin in locking position (C).

3. Install quick-lock pin on extendible dipperstick locking pin.

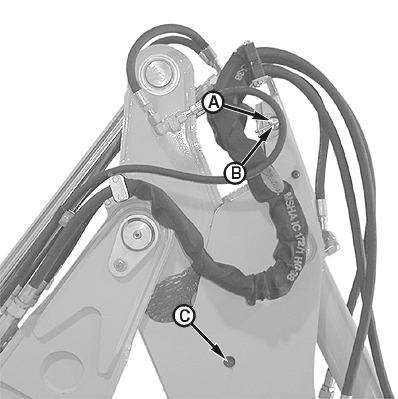

T131775B


A-Extendible Dipperstick Locking Pin
B-Storage Position
C-Locking Position

CED,OUO1079,412 -19-07JUL00-1/1
