Operating Differential Lock

CAUTION: Prevent injury from loss of machine control. DO NOT engage differential lock when driving at high speed, or steering will be limited.

Prevent injury from unexpected machine movement. When poor traction results in one rear tire spinning, slow the tire's rotation before engaging differential lock.

Push and hold differential lock foot switch (A) to lock the rear differential. When rear differential is locked, both rear wheels turn at the same speed.

Unequal traction will keep the rear differential locked. If the differential lock foot switch is released, the differential lock disengages automatically when traction evens out. Hold differential lock foot switch continuously to keep rear differential locked when traction is even.

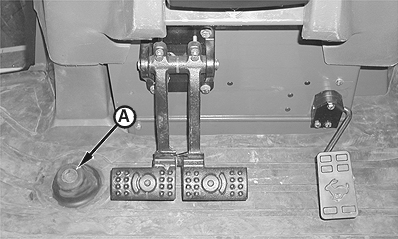

A-Differential Lock Foot Switch

CED,OUO1079,422 -19-07JUL00-1/1
