Inspect and Clean Hydraulic Reservoir Fill Screen

1. Remove hydraulic reservoir fill cap (A) from fill tube.

2. Remove retaining clip and hydraulic reservoir fill screen from fill tube.

3. Inspect hydraulic reservoir fill screen and clean as necessary.

4. Install hydraulic reservoir fill screen and retaining clip in fill tube.

5. Install hydraulic reservoir fill cap in fill tube.

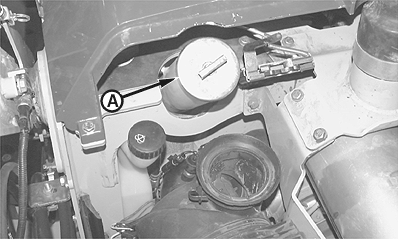

T131716C


A-Hydraulic Reservoir Fill Cap

CED,OUO1079,423 -19-10JUL00-1/1
