Check Coolant Level

CAUTION: Prevent possible injury from hot spraying coolant. Remove radiator cap only when cool enough to touch with bare hands. Then loosen cap slowly to stop so pressure is released from system before removing cap.

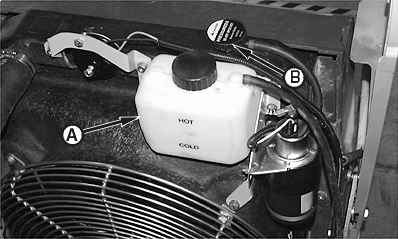

1. With engine cold, coolant level must be between HOT and COLD marks on coolant recovery tank (A).

2. If coolant is below COLD mark, add coolant to recovery tank.

NOTE: If recovery tank is full and radiator is low, check for leaks on radiator and hose connections.

3. If recovery tank is empty, check for leaks and repair as necessary. Add coolant at radiator cap (B) and recovery tank. Coolant level in radiator must be at bottom of filler neck.

A-Coolant Recovery Tank
B-Radiator Cap

CED,OUO1079,436 -19-11JUL00-1/1
