Check Boom-to-Dipperstick Pin Bolt Torque

Check torque on the backhoe boom-to-dipperstick pivot pin bolt (A). Torque the cap screw to specification.

Specification

Backhoe Boom-to-Dipperstick Pivot Pin Bolt -Torque 620 N·m (460 lb-ft)

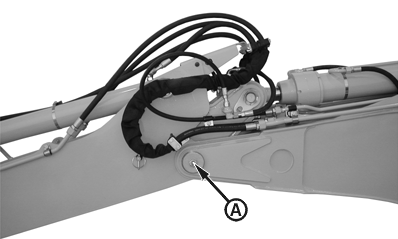

A-Backhoe Boom-to-Dipperstick Pivot Pin Bolt

T133574B

CED,OUO1079,443 -19-11JUL00-1/1
