Change Rear Axle Oil

NOTE: Dispose of waste oil properly.

1. Remove drain plug (A) and drain oil into a container. Install plug.

Specification

2. Remove check and fill plug (B) and fill with oil to bottom of port. (See Fuels and Lubricants chapter for proper type of oil.)

NOTE: It will take approximately five minutes for oil to settle into outer housing when oil is warm.

3. Wait five to ten minutes for oil to settle, then check level again and add oil as necessary. If oil is cold, settle time may increase.

4. Install plug.

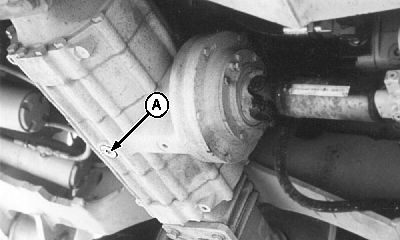

A-Drain Plug

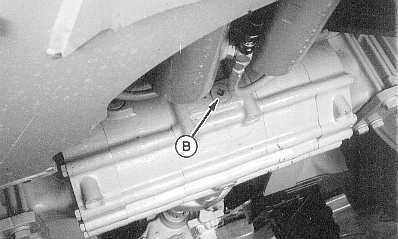

B-Check and Fill Plug

CED,OUO1079,447 -19-12JUL00-1/1
