Checking Coolant Hoses and Radiator

Check upper radiator hose (A) and lower radiator hose (B) for cracks and leaks. Tighten hose clamps (C) as necessary.

Check radiator for dirt, damage, leaks, and loose or broken mountings. Clean radiator fins.

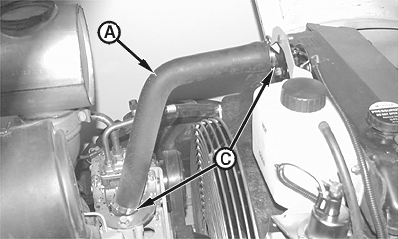

A-Upper Radiator Hose

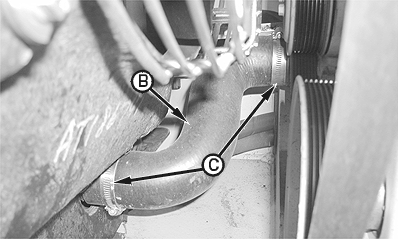

B-Lower Radiator Hose
C-Hose Clamp (4 used)

CED,OUO1079,452 -19-12JUL00-1/1
