Removing Batteries

IMPORTANT: Check for worn or frayed wires and loose or corroded connections.

NOTE: The toolbox must be removed to access the battery box. Always empty the toolbox before lifting it.

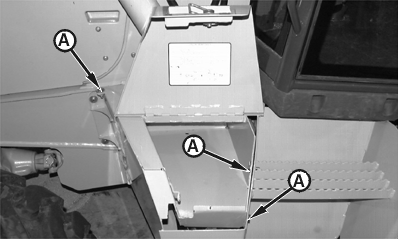

1. Remove cap screws (A) and lift toolbox out of battery box.

2. Disconnect negative (-) battery cables first, then positive (+) cables.

3. Remove nuts, washers, and hold-down brackets (B).

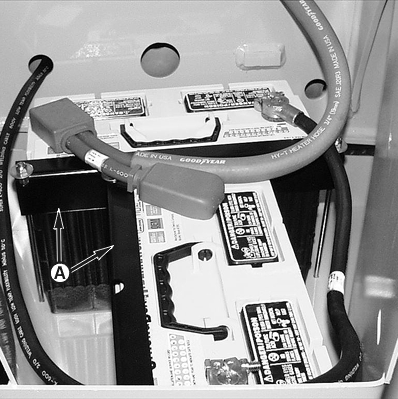

4. Lift batteries out of battery box.


A-Cap Screw (3 used)
B-Hold-Down Bracket (1 or 2 used)

T132012C
T131990C

Optional Dual-Battery Configuration Shown
