Replace Engine Air Cleaner Elements

Inspect elements when air filter restriction indicator lights. (See Inspect Air Cleaner Elements in Maintenance chapter.)

1. Open hood.

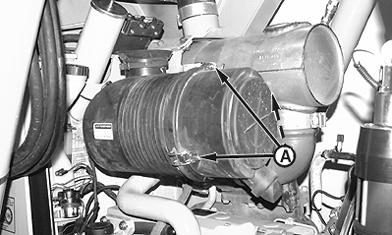

2. Unfasten clips (A) and remove air cleaner cover.

IMPORTANT: Remove elements gently to avoid dislodging dust from the elements.

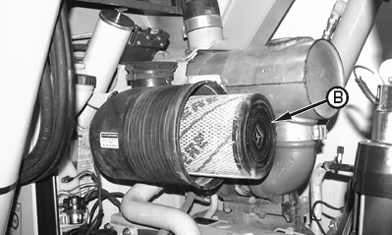

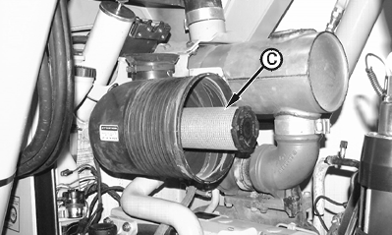

3. Slide primary element (B) and secondary element (C) out to remove.

4. Clean inside of air cleaner and outlet tube.

5. Install new secondary element and primary element. Ensure that each element is properly centered and seated.

6. Install air cleaner cover with dust unloader valve pointed down. Fasten clips.


A-Clip (3 used)
B-Primary Element
C-Secondary Element

T133589B
T133590B
T133591B

CED,OUO1079,474 -19-17JUL00-1/1
