Lubricate Non-Powered Front Axle and Steering Pivots

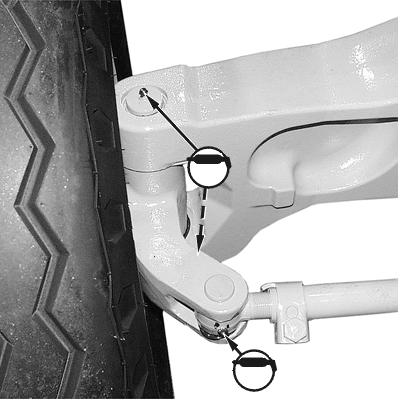

T135178B

3 Points-Left Side Shown

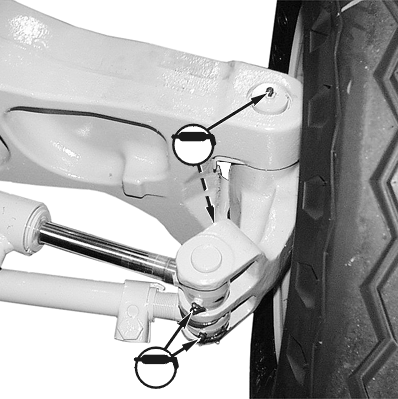

T135179B

4 Points-Right Side Shown

Apply grease to lubrication fittings on steering pivots until it escapes from joints.

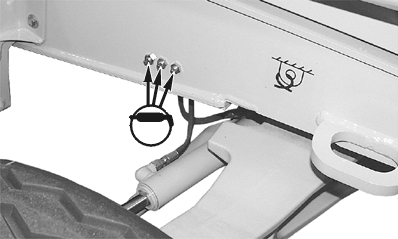

Apply 2 pumps of grease to each lubrication fitting on right side of frame to lubricate axle oscillating pivot.

(See Fuels and Lubricants chapter for recommended type of grease.)

T135180B

CED,OUO1079,491 -19-24JUL00-1/1
