Clean Cab Air Filters-Cab Machines

Cab Fresh Air Filter

1. Open latch (A) on inside of right-side window frame.

2. Remove fresh air filter cover (B) and fresh air filter.

3. Inspect filter. Clean as necessary. Replace if damaged.

4. Install filter and filter cover.

5. Close latch.

T132588B

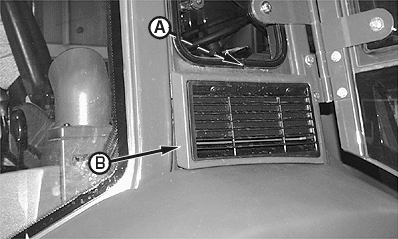

A-Latch
B-Fresh Air Filter Cover

CED,OUO1079,492 -19-24JUL00-1/2

Cab Recirculating Air Filter

1. Remove cab recirculating air filter cover (C) and cab recirculating air filter.

2. Inspect filter. Clean as necessary. Replace if damaged.

3. Install filter and filter cover.

Cleaning Cab Air Filters

causym CAUTION: Reduce compressed air to less than 210 kPa (2.10 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying debris, and wear personal protection equipment, including eye protection.

IMPORTANT: Always replace damaged air filters.

Clean filter(s) using one of the following methods:

  • Direct compressed air through filter(s), opposite normal air flow.
  • Tap filter(s) on a flat surface with dirty side down.
  • Wash in warm, soapy water and flush. Let filter(s) dry before reinstalling.
T132838B

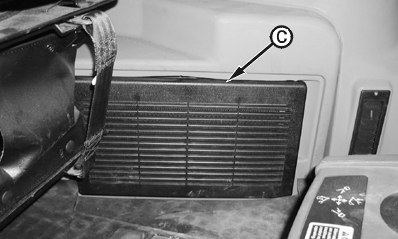

C-Cab Recirculating Air Filter Cover
