Clean Engine Air Cleaner Dust Unloader Valve

IMPORTANT: A missing, damaged, or hardened dust unloader valve will make dust cup precleaner ineffective, causing very short element life. Valve should suck closed above 1/3 engine speed.

Squeeze engine air cleaner dust unloader valve (A) to remove dust from air cleaner.

If operating in high dust conditions, squeeze dust valve every couple of hours of operation to release dust.

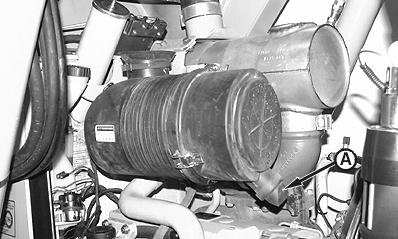

A-Engine Air Cleaner Dust Unloader Valve

CED,OUO1079,581 -19-31AUG00-1/1
