Lubricate MFWD Drive Shaft Splines-If Equipped

IMPORTANT: Lubricate daily when machine is used in mud.

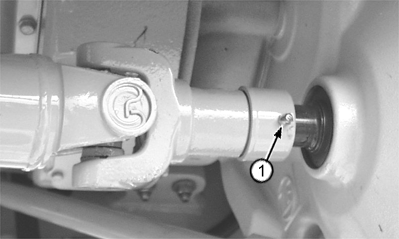

Apply grease to lubrication fitting (1) until it escapes from joint. (See Fuels and Lubricants chapter for recommended type of grease.)

1-Lubrication Fitting

CED,TX03768,2667 -19-10JUL00-1/1
