Reversing Stabilizer Feet

Use rubber pad side (A) of stabilizer foot when operating on paved surface to prevent damaging work area.

Use cleat side (B) of stabilizer foot when operating in dirt to prevent slipping.

To change foot surface, remove pin (C), rotate foot 180° to opposite surface, and install pin to keep foot from turning back around.

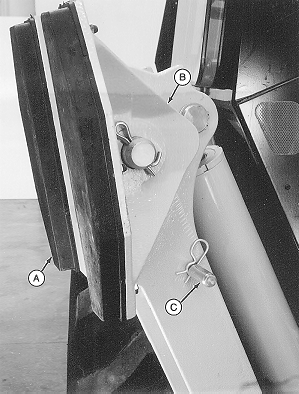

A-Rubber Pad Side
B-Cleat Side
C-Pin

T8214AO

OUO1079,0000256 -19-11SEP00-1/1
